Deck Cranes

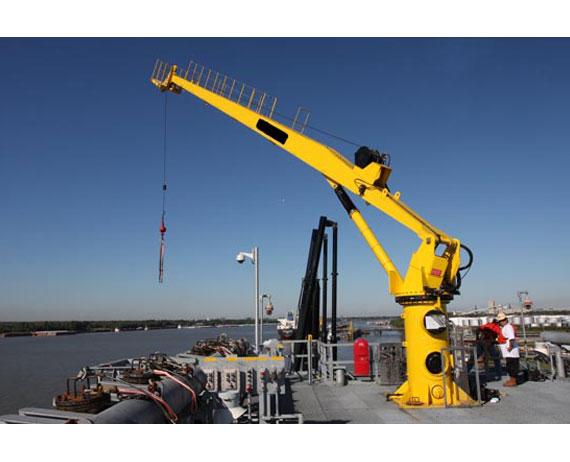

ELECTRIC LEVEL LUFFING CRANE
| Description | Specification |
|---|---|
| Lifting Capacity | 5 le SWL |
| Working Radius | Max. Out Reach 11m Min. Out Reach 2.8 m |
| Hoisting Speed | 18 m per min. |
| Luff Time | 25 Sec. |
| Slewing Speed | 1.5 R.P.M |
| Slewing Sector | 360 Degree |
| Permissible Heel/Trim with Max. Capacity | 5 Degree |
| Operation | Electro Hydraulic |
| Power Consumption | 32 K.W. (approx) |
| Duty Rating | 40% ID 6 |
| Power Supply | 415 Volt, 50 Cycles, 3 Phase A.C. |
| Space Heater | 250 Volt, A.C. |
| Protection Class | IP 54 |
